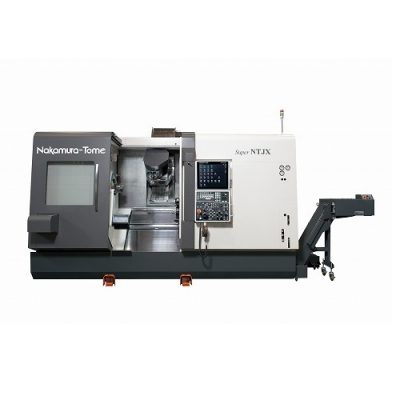

NAKAMURA-TOME Super NTJX

下刀塔配备Y轴
高刚性ATC型复合加工机

• 下刀塔Y轴行程70mm(+20,-50)
• 主轴端面间距离1,290mm
• 工具轴回转角度190° (±95°)
• ATC工具配备数量40把 (op. 80,120)
• 对向双主轴，左右同时加工，缩短加工时间下刀塔配備Y軸
高剛性ATC型複合加工機

• 下刀塔Y軸行程70mm(+20,-50)
• 主軸端面間距離1,290mm
• 工具軸回轉角度190° (±95°)
• ATC工具配備數量40把 (op. 80,120)
• 對向雙主軸，左右同時加工，縮短加工時間

Lower Turret Equipped with Y-axis!
High Rigidity CNC Multitasking Machine with ATC. Tool Spindle and Lower Turret.

• Lower turret Y-axis travel 70mm(+20,-50).
• Distance between spindles 1,290mm.
• B-axis swiveling range 190° (±95°).
• Number of tools for ATC magazine 40 pcs (op. 80 ,120).
• Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles.
